Large Size Air Cooled Scroll Chiller & Heat Pump

Large Size Air Cooled Scroll Chiller & Heat Pump (165kW~502kW)


• Panels and frame are made from galvanized steel protected with polyester powder painting to ensure durability and protect against corrosive agents.
• Hermetic scroll type compressor, with built-in thermal overload cut-out and crankcase heater, mounted on rubber vibration isolators.
• External rotor type axial fans, equipped with direct drive motors, low noise, protection level IP54, provided with a protective outlet grille. Saw-shaped impellers provide large air volume, high durability and high air supply efficiency with low noise.
• The condenser built with seamless copper tubes mechanically expanded into blue hydrophilic aluminum fins.
• Evaporator built with high efficiency shell & tube type heat exchanger, factory insulated with flexible close cell material.

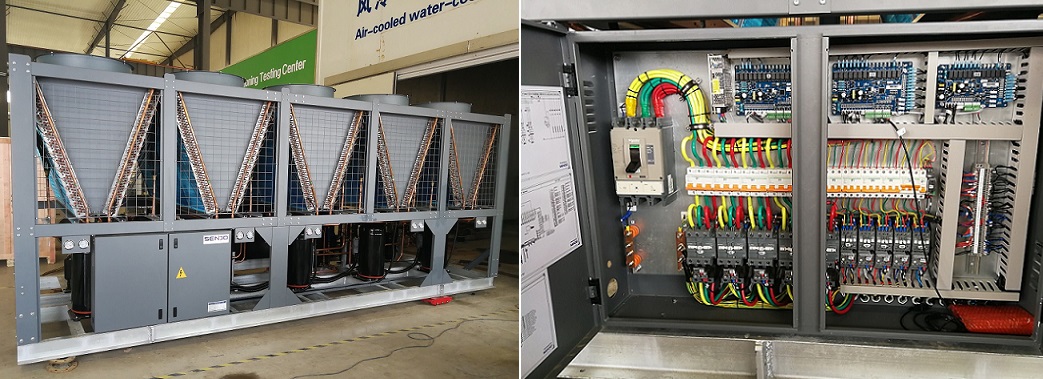

• Electric panel consists of breakers and contactors for compressors & condenser fan motors, phase sequence protector and other necessary protection devices for the main components. All electric parts are Schneider Electric brand.

• Convenient installation and Lowest total cost of ownership
No need equipment rooms and cooling tower, low initial investment. The chiller has been equipped with the water flow switch, and has been filled with refrigerant before delivery. Each unit was extensively tested to verify its operational reliability, the unit can be placed in service after being connected with power supply and water supply during field installation.

• Year-round cooling, low ambient temperature cooling
• High efficiency air cooled chiller with free-cooling
• Process cooling, customized inlet/outlet water temperature
Total/Partial heat recovery
• Hydronic module

Assembly Line

Colors can be ordered in either white or dark grey.
The maximum cooling capacity we provided Air Cooled Scroll Chiller 315Ton/1100kW.
