Modular Type Air Cooled Water Chiller & Heat Pump

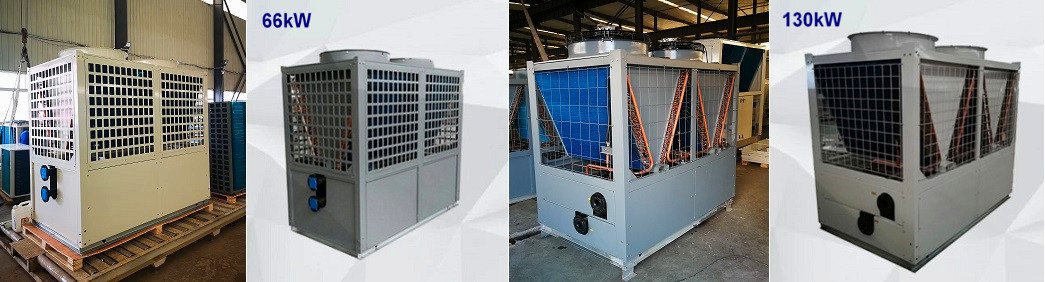

Conventional Modular Type Air Cooled Chiller & Heat Pump (66kW~135kW)
Air to Water Chiller & Heat Pump
Air Cooled Scroll Chiller & Heat Pump

Sendo Modular Chillers adopt V shape air side heat exchanger, shell & tube type water side heat exchanger and scroll compressors. The master module can work independently or together with up to 16 slave modules, capacity from 66kW to 2160kW.

Colors can be ordered in either white or dark grey.


Back-up functions
In a combination system, if one module failed, other modules can be back-up instead of the failed one for continuing operation.

ACD (Alternative Cycle Duty) operation
In one combination module, all slave units operate as alternative in cycle duty to keep equal running time, realize higher stability, better reliability and longer lifespan.

Hermetic scroll compressor
Famous brand 3-phase scroll type compressor, with built-in thermal overload cut-out and crankcase heater, mounted on rubber vibration dampers.

V Shaped condenser and
Axial fan
The condenser built with seamless copper tubes mechanically expanded into blue hydrophilic aluminum fins. External rotor type axial fans, equipped with direct drive motors, low noise 8 poles, protection level IP54, provided with a protective outlet grille.

Shell & Tube heat exchanger
Evaporator built with high efficiency shell & tube type heat exchanger, factory insulated with flexible close cell material.

Multiple protection
Electric box consists of breakers and contactors for compressors & condenser fan motors, phase sequence relay and other necessary protection devices for the main components. All electric parts are Schneider Electric brand.

High precision electronic expansion valve optional
EXV for more precisely flow control. Fast respond resulting in higher efficiency and improved reliability.

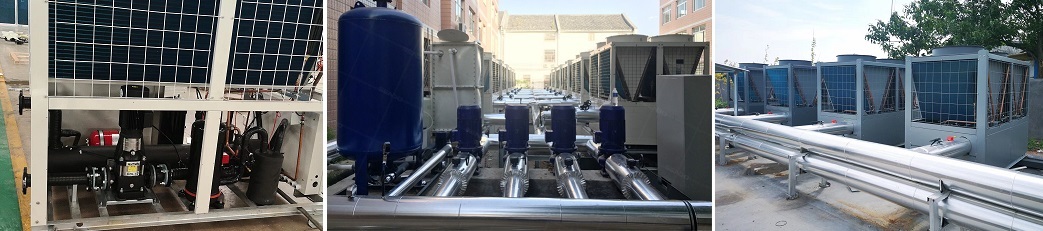

Built-in hydronic module optional
The modules are fully integrated (Expansion tank, water circulating pump and water flow switch). It saves you much installation space and human cost.

Assembly Line
